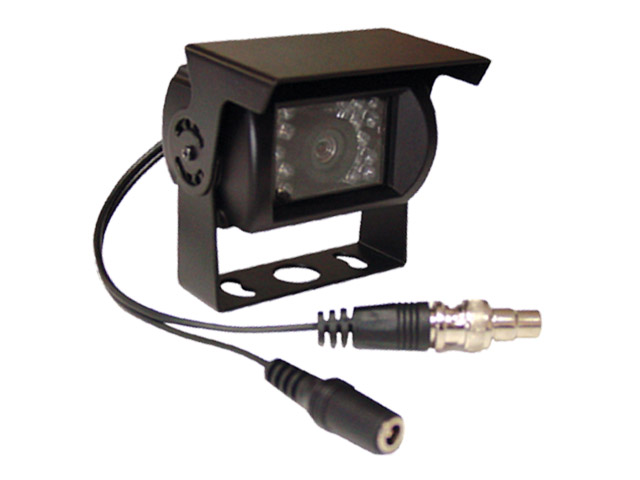

CMOScamera is designed for external mounting and is suitable for most types of vehicles. Is equipped with infrared diodes which provide a night vision up to 12m and with light from the tail lights and reverse lights the distance even further. .
CMOS camera provides a sharper picture and better color reproduction, and that it is light sensitive, which means better in the dark features.
§ Rear View / Night Mode Reversing Camera
§ Color, high resolution, with infrared illumination at night
§ It Can act as a reversing camera or security camera
§ Displays a reversed camera image on the monitor to duplicate the normal view seen in a rear view mirror
§ PAL / NTSC TV system
§ 18 infrared LEDs to Provide Night View
§ Adjustable shade to Prevent glare from sun
§ Automatic Exposure
§ Automatic Gain Control
§ Automatic Balance
§ Mirror image only
§ Pixels: 628 x 582
§ Resolution: 380 TV lines
§ Voltage: 12V
§ 3.6mm lens with 92 degree angle of view
§ Video output: RCA connector, 1.0 Vp-p, 75 ohms
§ Current Consumption <= 200mA

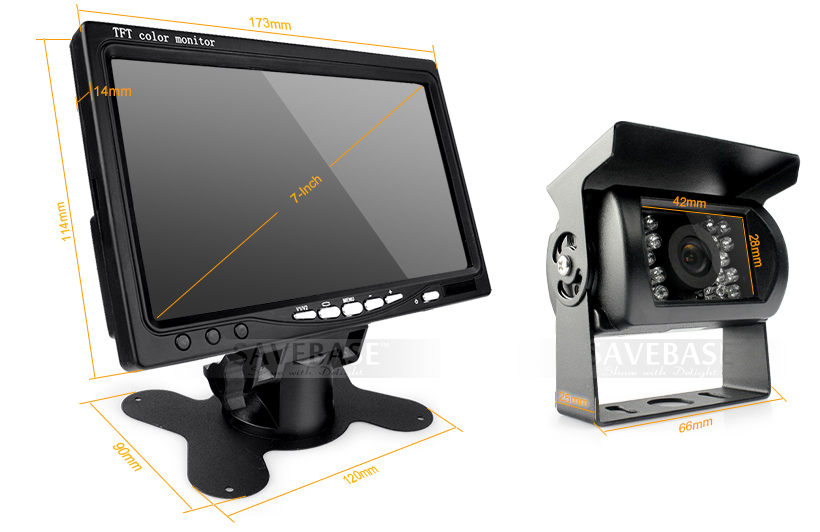

§ Size of camera: 5.5 x 6.5 x 4.3cm
§ Video Cable length: 15m
§ Power cord length: 15m
