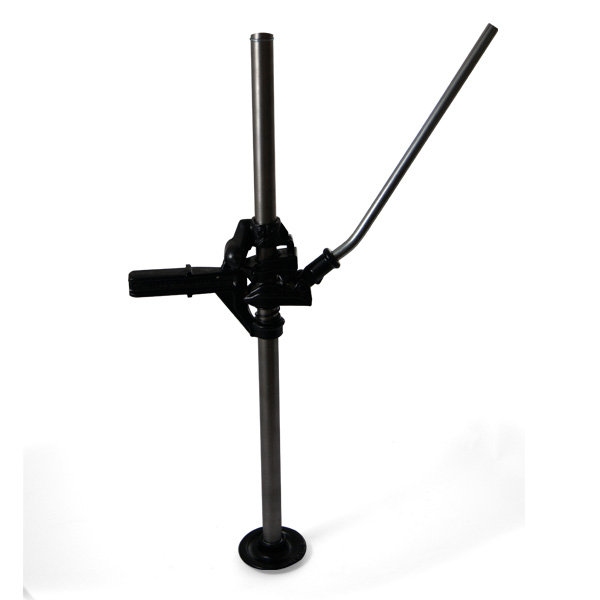

ON-BOARD MECHANICAL JACK - 480MM

On-board mechanical jack - 480mm

Designed to be on the rally car.

For use in a critical/emergency situation.

This jack is lightweight and compact.

Sturdy base is manufactured from a high grip rubber which is suitable for all terrain, providing the jack a solid stand point all time.

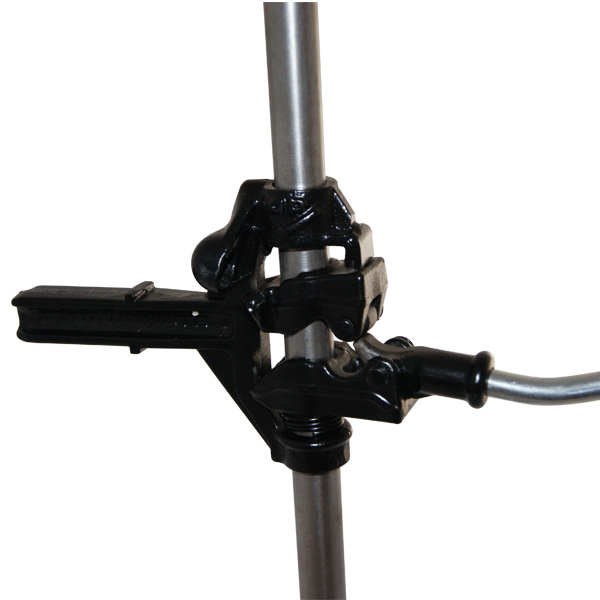

The jack is placed next to the vehicle at the jacking points, with the protruding leg the platform to raise the car. It has a ratchet mechanism to lift the vehicle and travels

from the minimum point of 100mm all the way up to the maximum of 410mm.

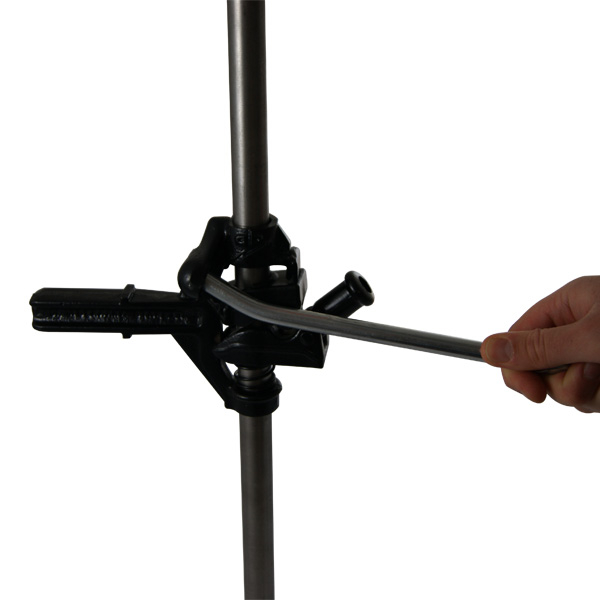

Ratchet handle is removable and there is a hollow in the main shaft of the jack for ratchet handle storage.

Technical details:

Weight: 2.3 KgÂ

Length: 480 mm

Maximum lifting height: 410 mm

Minimum lifting height: 90 mm

Nose : 22mm x 22mm

Capacity: 750 Kg
