FACET RED TOP CYLINDRICAL FUEL PUMP KIT (8MM TAILS)

An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10/E85/Diesel Compatible.

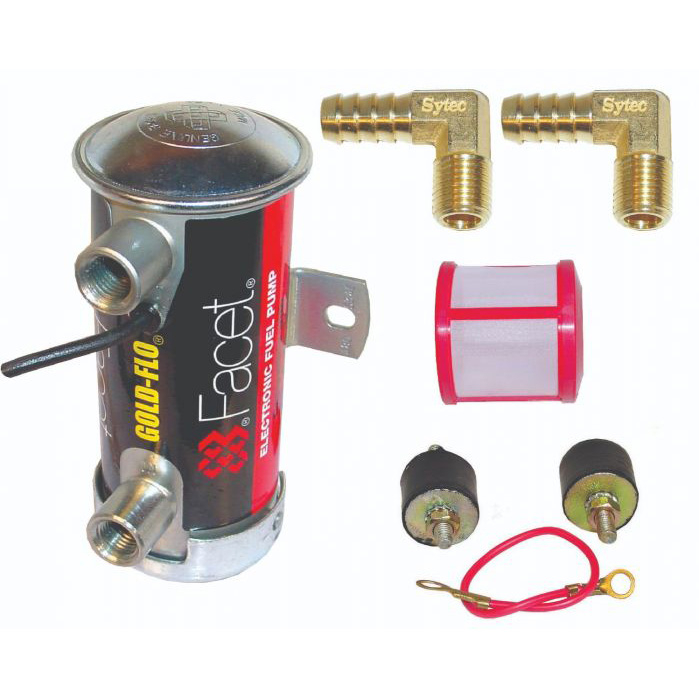

Contents:

• 1x Pump (480532E)
• 2x 8mm 90 Degree Union (FPA9021A)
• 1x Facet Mounting Kit (FPA905)
• 1x Spare Filter (FPA908R)

Specifications:

• Pump: 480532E
• Voltage: 12v
• Earth: Neg
• Pressure (Psi): 6.0-8.0
• Flow: US Gallons/Hr 45
• Dry Prime Height in Mtrs: 0.6
• Thread Size: 1/4 nptf
• Operating Temperature: -40º to +180° F (all Models)

Â

Legal Requirements: Certified & Complies With EEC 95/54 Requirements

Length: 140mm
Diameter: 54mm
Weight: 0.7kg

Fuel Union Installation: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
