FACET SOLID STATE PUMP KIT 40106K

These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

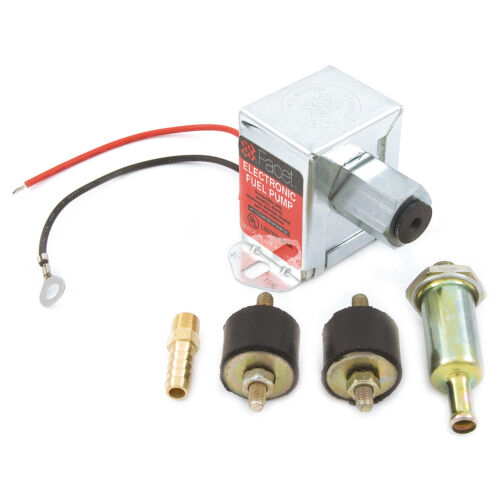

Contents:

• 1x Pump (40106)
• 1x 8mm Straight Union (FPA903A)
• 1x 8mm Filter Union (FPA906)
• 1x Facet Mounting Kit (FPA905)

Specification:

• Pump: 40106
• Voltage: 12v
• Earth: Neg
• Pressure (Psi): 4.5-7.0
• Flow: US Gallons/Hr 32
• Dry Prime Height in Mtrs: 0.3
• Thread Size: 1/8th nptf
• Operating Temperature: -31º F to 55° F (all Models)

Legal Requirements: Certified & Complies With EEC 95/54 Requirements

Length: 75mm
Height: 60mm
Weight: 0.5kg

Fuel Union Installation: When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
