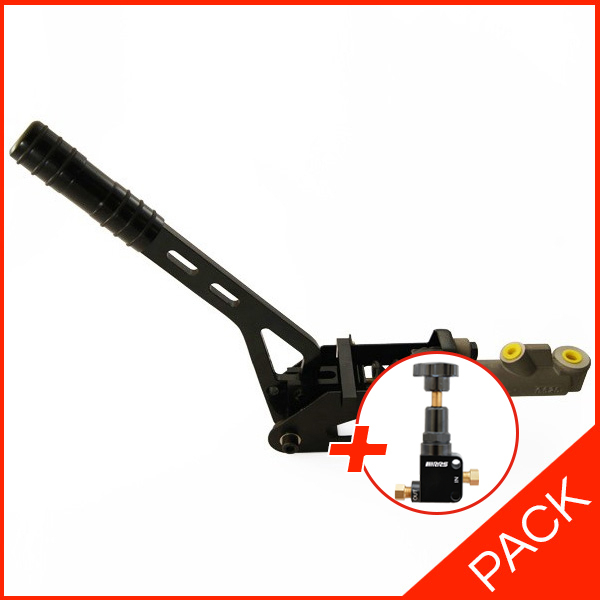

ALUMINUM HYDRAULIC HANDBRAKE PACK (HANDBRAKE + MASTER CYLINDER + LIMITER)

RRS offers you its handbrake assembly for your vehicle with: Master Cylinder + Distributor / Limiter + complete handbrake

HAND BRAKE FEATURES:

Lightweight aluminum handle

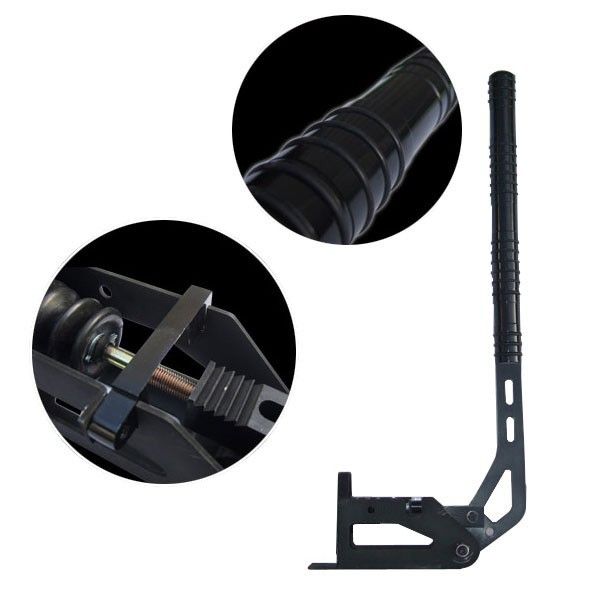

Ergonomic extension 27 mm in diameter with rubber washers for better grip (see zoom on photo)
Anti-reflective black anodized
Lightened steel support
Parking brake lock

*For practical packaging reasons, your Vertical ALU RRS handbrake will be delivered to you in a horizontal position.
A simple manipulation allows you to position it vertically in less than 2 minutes!

CHARACTERISTICS OF THE MASTER CYLINDER:

Strong and efficient master cylinder specially designed for motor racing. It meets drastic quality requirements.

Diameter: 5/8 (.625) 15.87mm
Inlet thread: 7/16-20 UNF convex
Outlet thread: 3/8-24 UNF concave
Push rod: 5/16-24 UNF

CHARACTERISTICS OF THE PRESSURE LIMITER / REGULATOR:

RRS REGULATOR by Wilwood
Adjustment of the brake distribution between front and rear by limiting the pressure up to 57%.
Inlet/outlet threads 1/8-27NPTF concave
Diameter of fixing holes: 6.35 mm. Weight: 148g
