RRS has selected for you a range of compact, waterproof and high quality connectors specially designed for automotive connections.

Very reliable, these 2 pins super seal connectors are common in competition especially for the electrical connections of: the headlight ramp, fuel pump, engine sensor and others ...

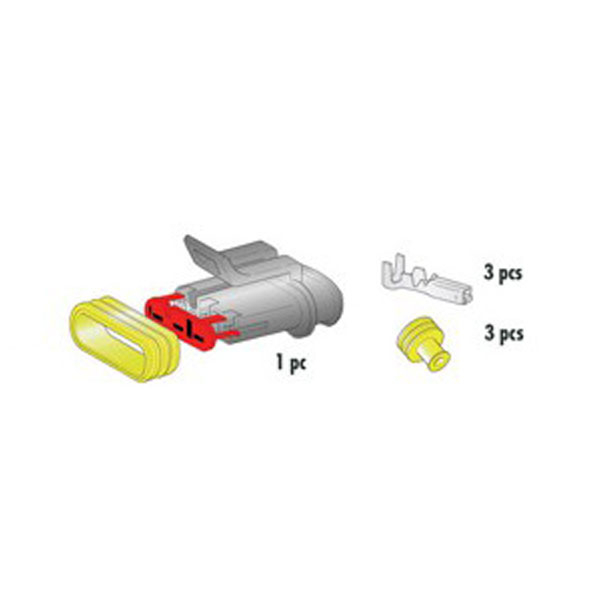

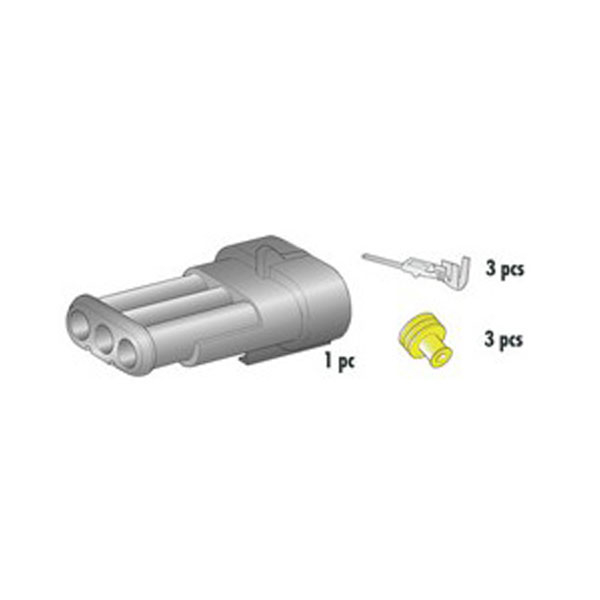

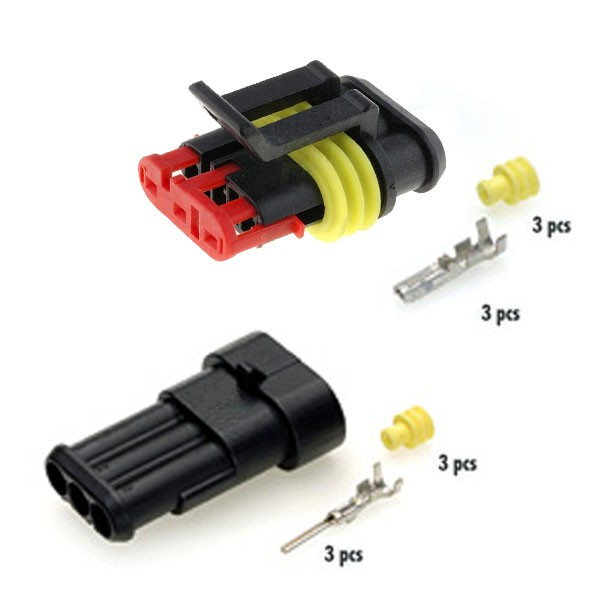

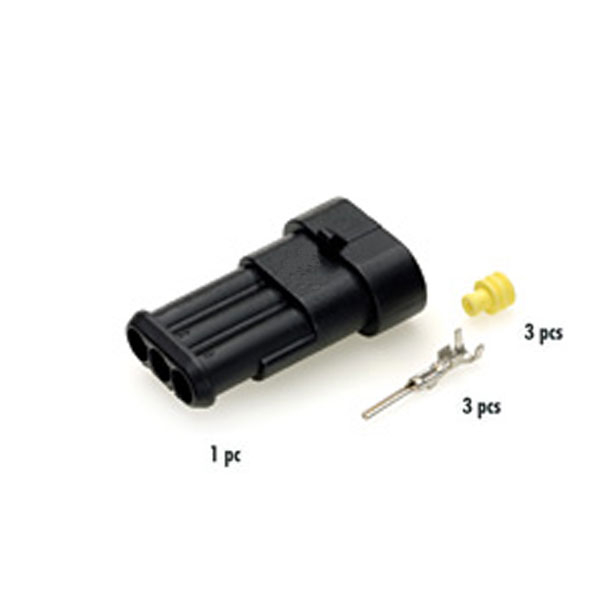

The Male connector kit includes:

• 3x yellow silicone seals
• 3x female crimp terminals
• 1x male connector.

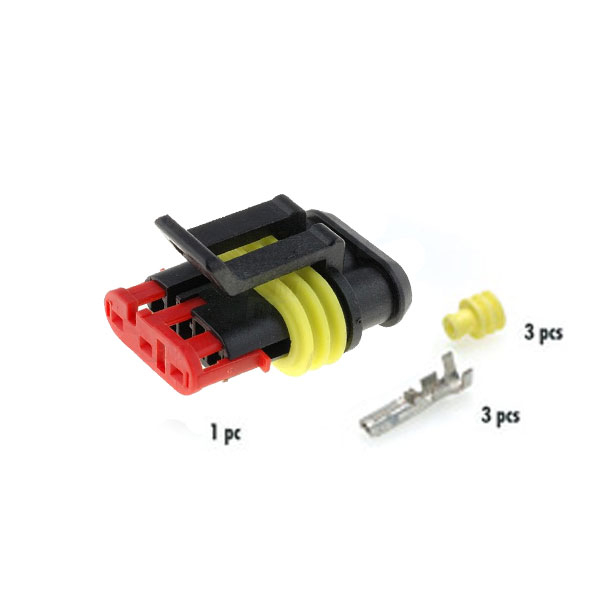

The Female connector kit includes:

• 3x yellow silicone seals
• 3x male crimp terminals
• 1x female waterproof connector.

Characteristics :

• Material: Polyamide
• Waterproof IP67
• Temperature: -40 ° C to 125 ° C
• Current: 14Amp
• Standard: DIN 40050, IEC 529
• Contacts Brass Crimp
• Cable diameter: 1.8 to 3.3mm
• Wire size: 0.75mm² to 1.5mm²
• AWG Number: 18AWG to 16AWG
