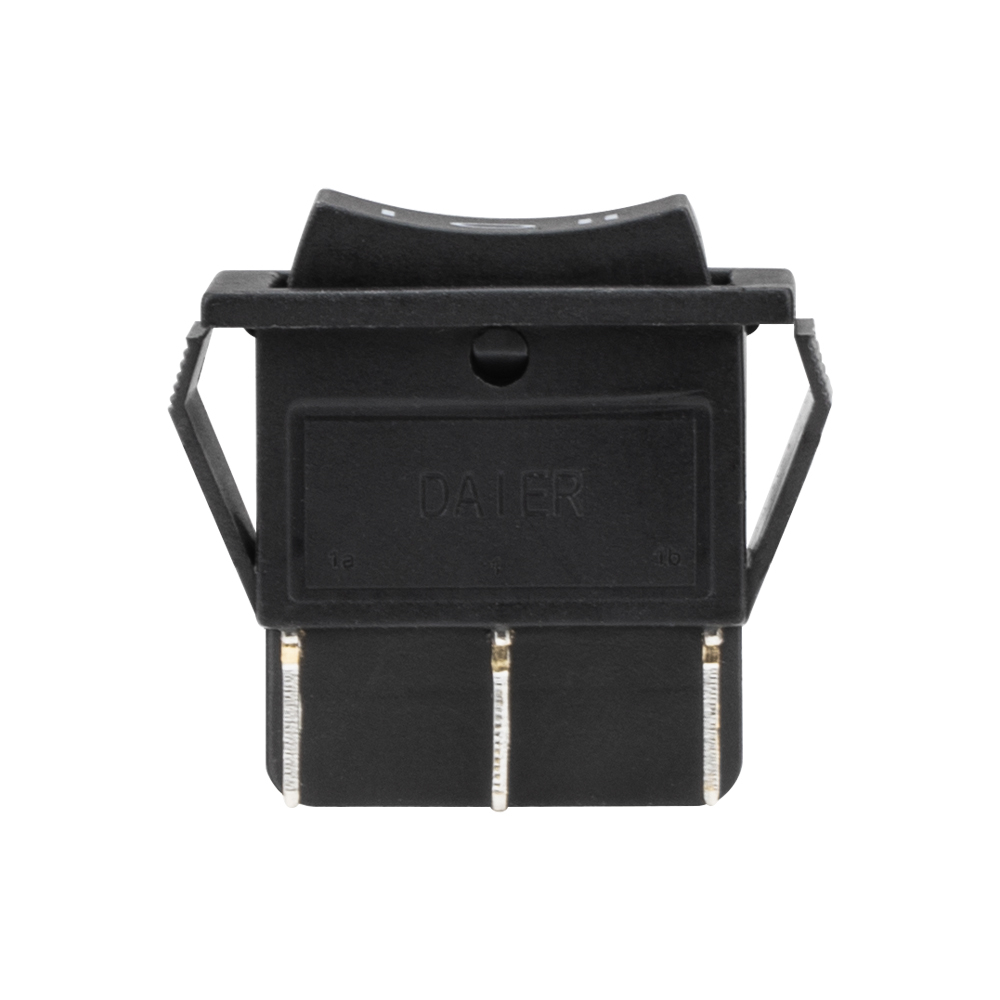

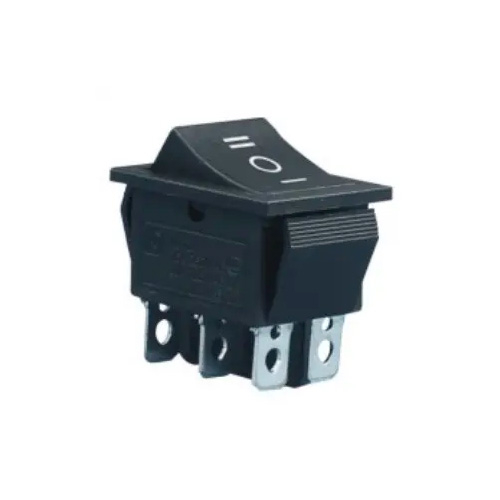

This 3-position, 6-pin toggle switch offers low switching current in a compact design. This is a snap-on toggle switch with a high mechanical life in a robust nylon 66 housing.
These toggle switches can be used in a variety of applications.

Housing: Nylon 66
Button : Nylon 66
Terminal: Brass
Button color: Black
Housing color: Black
Rating:20A 125VAC/15A 250VAC
Switch operation: ON-OFF-ON
Contact resistance: 35 mΩ maximum
Insulation resistance: 100 mΩ min (500 V CC)
Operating Temperature: -25 ℃ ~ + 85 ℃
