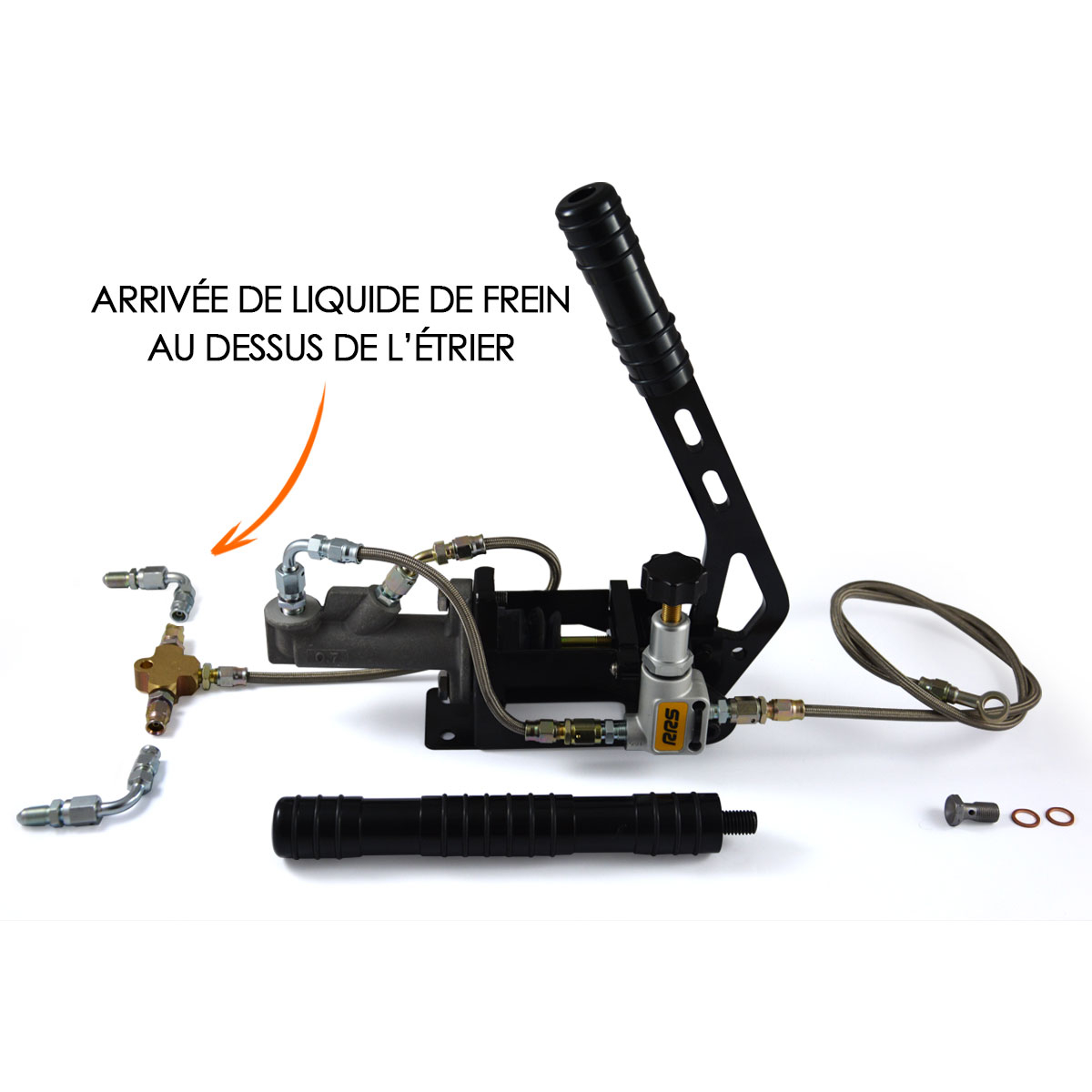

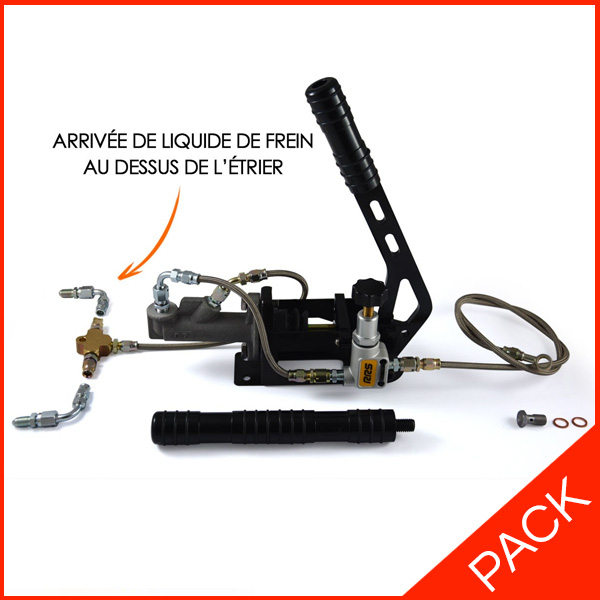

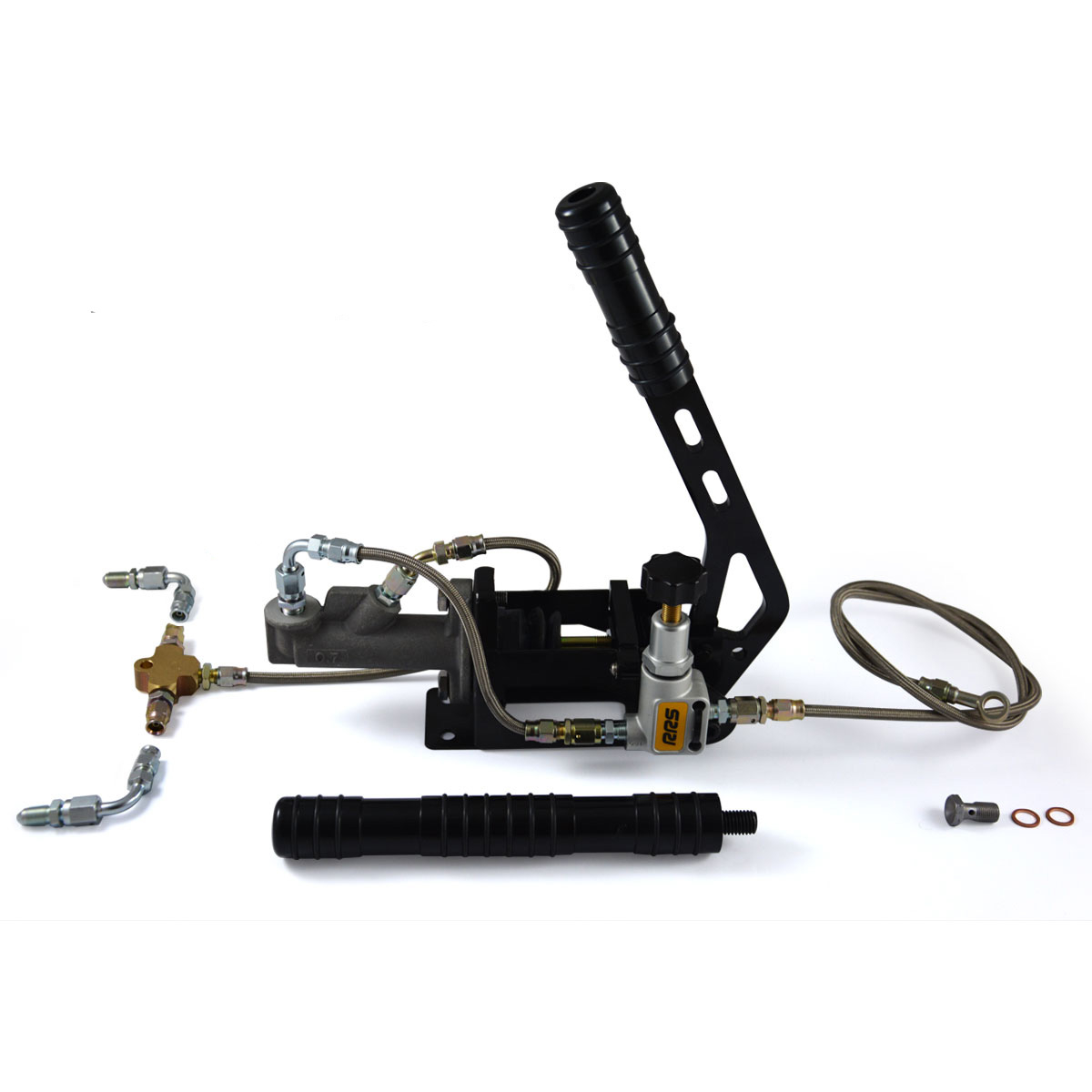

Handbrake braking pack with fluid supply above the calipers

RRS has designed this pack to facilitate the installation of the braking circuit for the rear wheels of your car.

It is specially adapted for vehicles with lateral brake fluid inlet on the calipers

Complete pack to make your rear braking circuit.

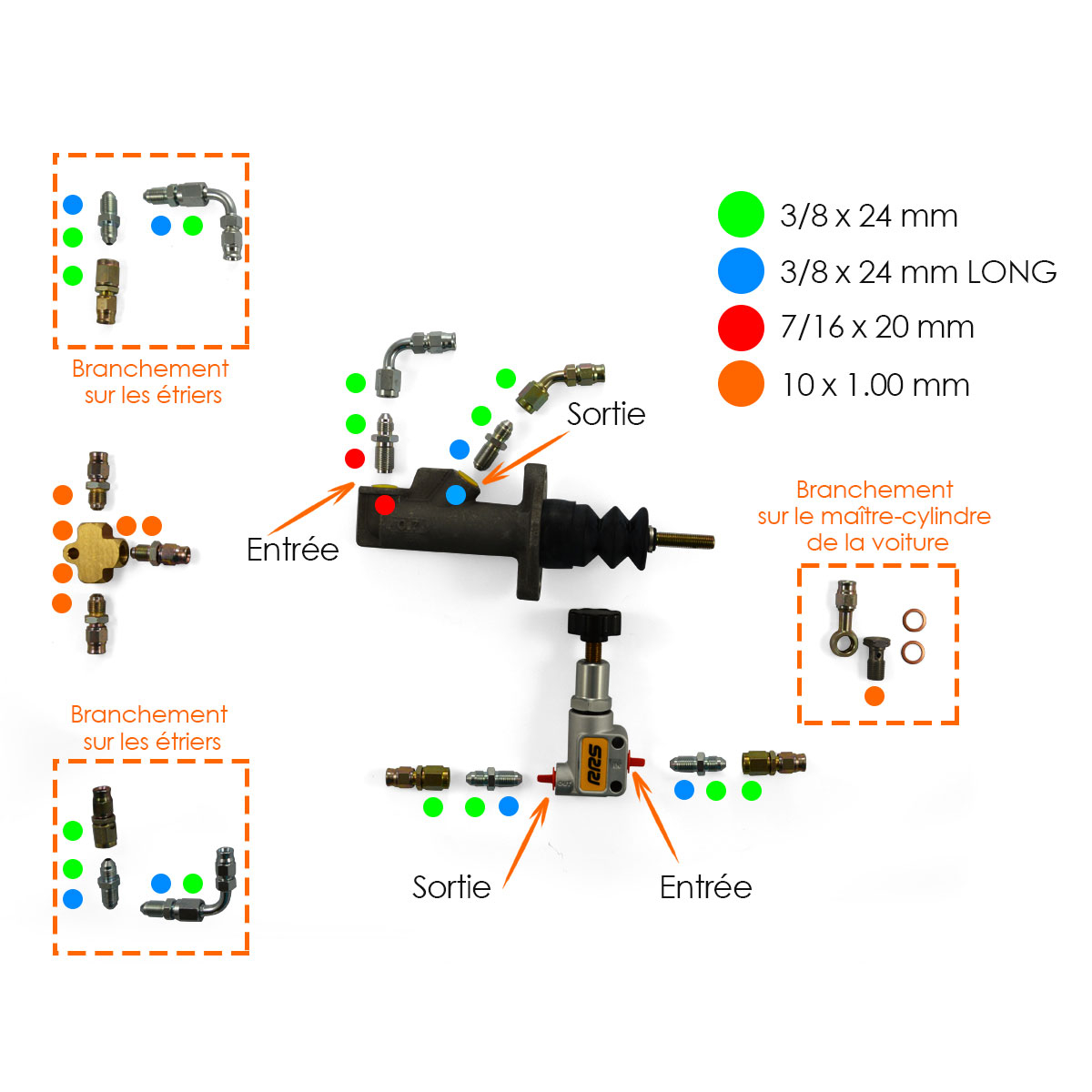

The pack includes:

1x ALU Hydraulic handbrake to be mounted in horizontal or vertical position

1x PRO dial pressure limiter/regulator

1x Master cylinder 5/8 (0.625) - 15.8mm

5m of aviation hose

1x Long straight banjo dash 3 for screw diameter 10mm

1x Banjo screw 10x100 steel

1x JIC banjo screw 3/8x24 steel

2x Copper gasket dash 3 10mm

2x Special limiter regulator adapter

2x Straight female dash 3 connector

3x Dash 3 female connector 90° elbow

1x 45° elbow female master cylinder connection

1x Male-Male Inlet Adapter for Master Cylinder

1x Male-Male output adapter for master cylinder

2x Male-Male Steel Adapter 3/8 x 24 convex 10 x 1.00 LONG

3x Dash 3 connection - straight male 10 x 1.00

1x 3-way female tee 10 x 1.00 concave

Â

Note: If the brake fluid supply to the calipers is lateral, RRS offers you another braking pack suitable for this type of vehicle.
