BIGWAY 20" FAT BIKE 250W 36V ELECTRIC BIKE - DELUXE

This comfortable, reliable and alluring electric fatbike from BIGWAY, which is fully assembled in Sweden, wants to inspire you to get out there. To see and experience life from a new point of view. And to breath fresh air while on the move.

✅ Fully built and tested in Gothenburg -Sweden
✅ Hydraulic disc brakes front and rear
✅ Anti-Puncture Tyres
✅ 36V 15Ah Battery (40-60km)
✅ Foldable
✅ Motor 36V 250W
✅ Front and rear lights + indicators
✅ Shimano 7 gears
✅ 2 year warranty

High-end components – No compromises

The best eBike calls for the best components. BIGWAY stands out from the crowd when it comes to comparing design, functionality, quality, durability and price.

TECHNICAL SPECIFICATIONS:

• 6061 aluminum alloy, foldable
• Total weight less than 30kg (including battery)
• Can be folded in seconds
• Easy handling for transport
• Support to keep the bike folded in an upright position
• Adjustable seat and handlebars to suit everyone
• Rubber handle with secure grip
• Comfortable wide saddle
• High quality TCRFD-LXD lithium (Li-ion) battery 36V 15Ah, CE marked
• Charging time from 6 to 8 hours
• Battery charger: 220 VAC, 50Hz, portable, CE marked
• Easily removable, chargeable from the e-bike
• Lock with key to fix the battery to the frame
• From 0 (no assistance) to 5 (full assistance)
• Configurable for personal settings
• Backlit LCD screen
• Shows time, speed and battery level
• Resistant to water and dust
• "Soft Start" mode at a fixed speed of 6Km/h (3.80 Mph), very helpful for climbing
• Shimano SHIMANO ALTUS 310 Thumb Shifter Plus 7 shifters
• SHIMANO Tourney / RD-TY300D
• Tire brand: CHAOYANG 20”x4”(Hippo Skin + / Dino Skin 3mm)
• Tire size: 20"x 4.0
• Black color
• Max pressure to 20PSI 140kPa 1.4 Bar

• Motor:
  MODEL: JIABO Motor
  TYPE: Brushless direct current
  POWER 250 Watt
  VOLTAGE: 36 Volt
  PLACEMENT: Rear wheel


• Battery:
  CAPACITY: 36V 15AH
  TYPE OF CELLS: Lithium ion (Li-Ion) with TCRFD-LXD elements
  AUTONOMY (KM): 40 – 60 Km depends on the engine effort
  RECHARGING TIME :: 6 – 9 hours (approximately)
  CHARGING CYCLES: 1000 cycles (approximately)
  PLACEMENT: External, saddle pad, removable
  USB PORT: Yes


• Frame:
  MODEL: FAT-Bike, foldable
  MATERIAL: Aluminum, 6061
  SIZE: 20 ”
  TOTAL WEIGHT: 30Kg (approximately)
  AVAILABLE COLORS: Black

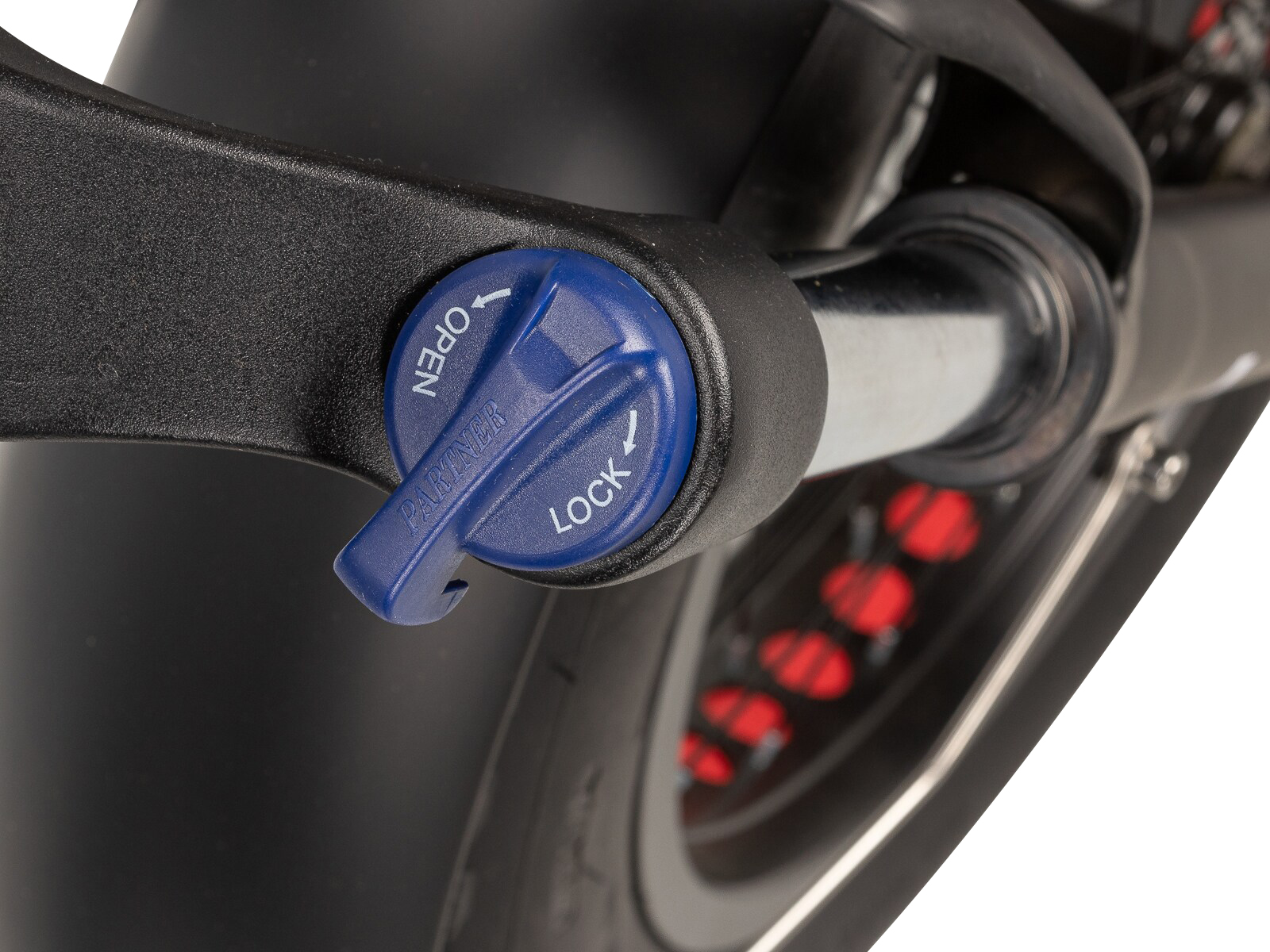

• Front Fork:
  TYPE OF FORK: Standard fork


• Steering:
  TYPE: In aluminum, with folding and adjustable handlebar
  HANDLEBAR: Riser bar


• Brake:
  BRAKE TYPE: Disc
  FRONT BRAKE CALIPER: Hydraulic, C-STAR
  REAR BRAKE CALIPER: Hydraulic, C-STAR
  BRAKE LEVELS: In aluminum

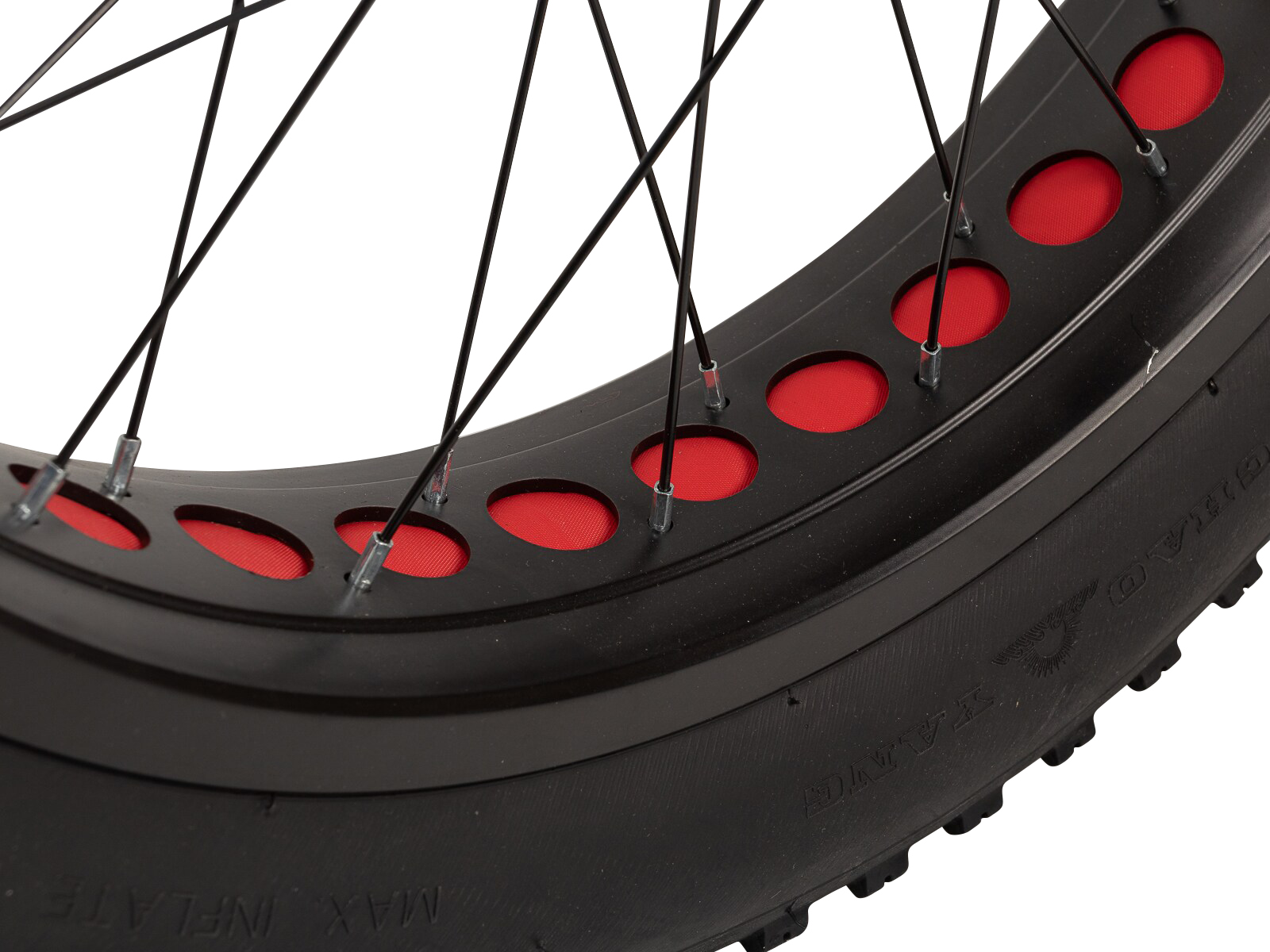

• Wheel:
  TIRE: CHAOYANG 20″ * 4 ”
  RIM: Aluminum, 34 holes with double reinforced chamber
  ANT HUB .: with brake disc
  REAR HUB: With engine and brake disc


• Gear Shift:
   TRANSMISSION REPORTS: 7 Speed
  FRONT DERAILLEUR: Not present
  REAR DERAILLEUR: SHIMANO Tourney / RD-TY300D
  CONTROLS: REVOSCHIFT RS35
  CROWN: Aluminum, single, 1 speed, 48 teeth


• Controller:
  MODEL: KEYDYSP KD-58C
  TYPE: Multifunction with LCD display
  PAS LEVELS: 5 levels (speed)
  CRUISE CONTROL: Yes, max 6Km / h
  FUNCTIONS: Battery status indicator, backlight, odometer, pas levels


• Other components:
  SADDLE: In “Gel”
  SEAT POST: Aluminum alloy with quick release (ZOOM)
  MUDGUARDS: Metal, steel (rust free)
  HEADLIGHT .: LED, can be activated from the display
  REAR LIGHT: LED, can be activated from the display
  PEDALS: Folded, in ABS with aluminum body


• Accessories:
  COMPASS: Not present
  LUGGAGE RACK: Metal (Max 25Kg)
  PHONE HOLDER: Not present
  CLACKSON: Yes (bell)




Warranty:
24 month warranty on the electrical part.
5 month battery warranty.

- CERTIFICATE OF CONFORMITY
- EU STANDARD EN15194
