Highlights

• Motor: 250W brushless motor (36V), rear-mounted
• Battery: 36V 10.4Ah Li-ion, removable & CE certified
• Gear system: Shimano 7-speed gears
• Tires: Wide 20"x4.0 FAT tires – ideal for snow, sand, and rough terrain

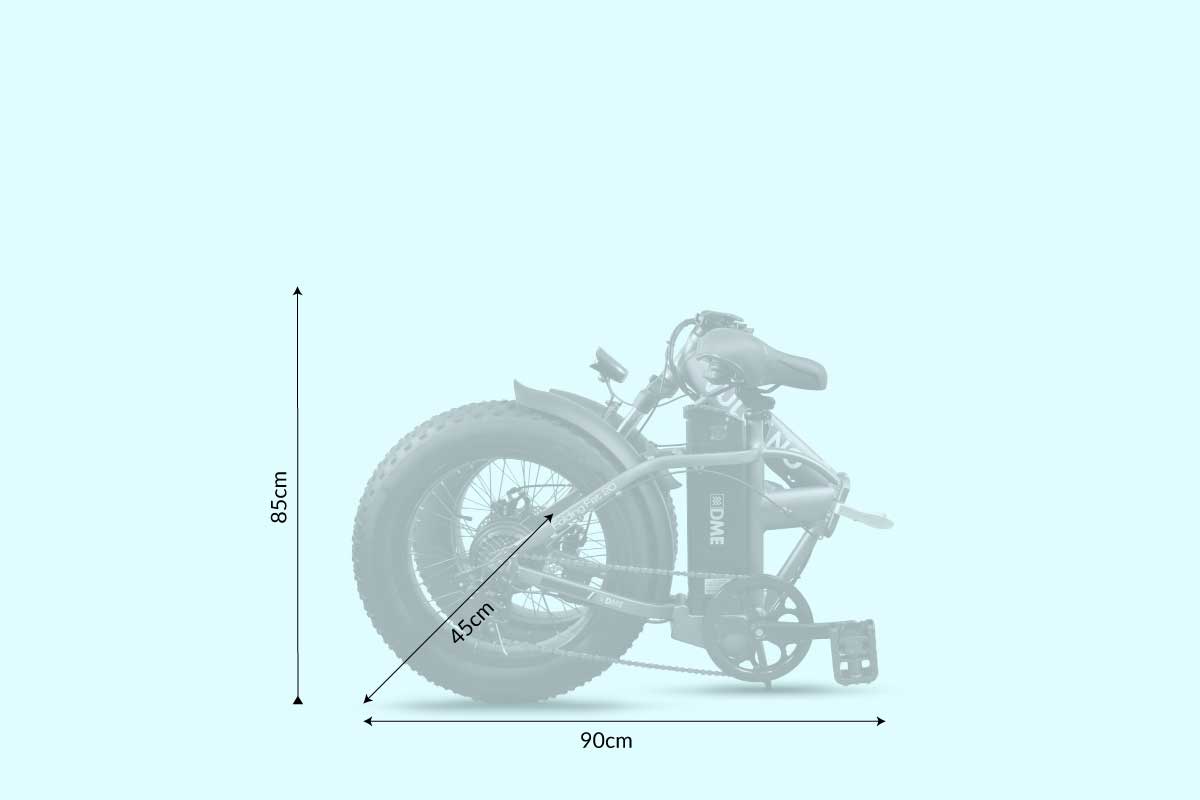

• Foldable frame: 6061 Aluminum, folds in seconds
• Display: Backlit LCD showing speed, battery level, and more
• Brakes: Mechanical disc brakes front and rear

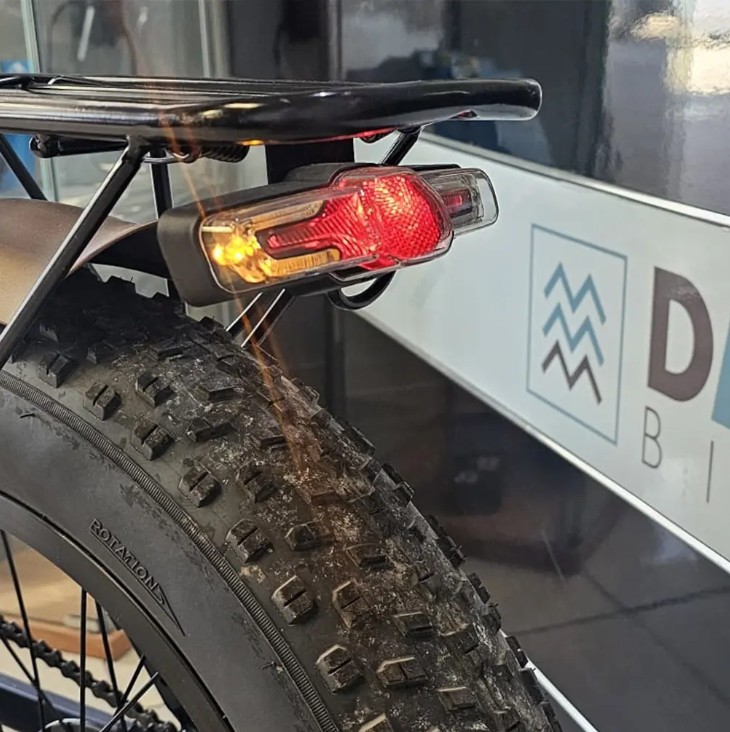

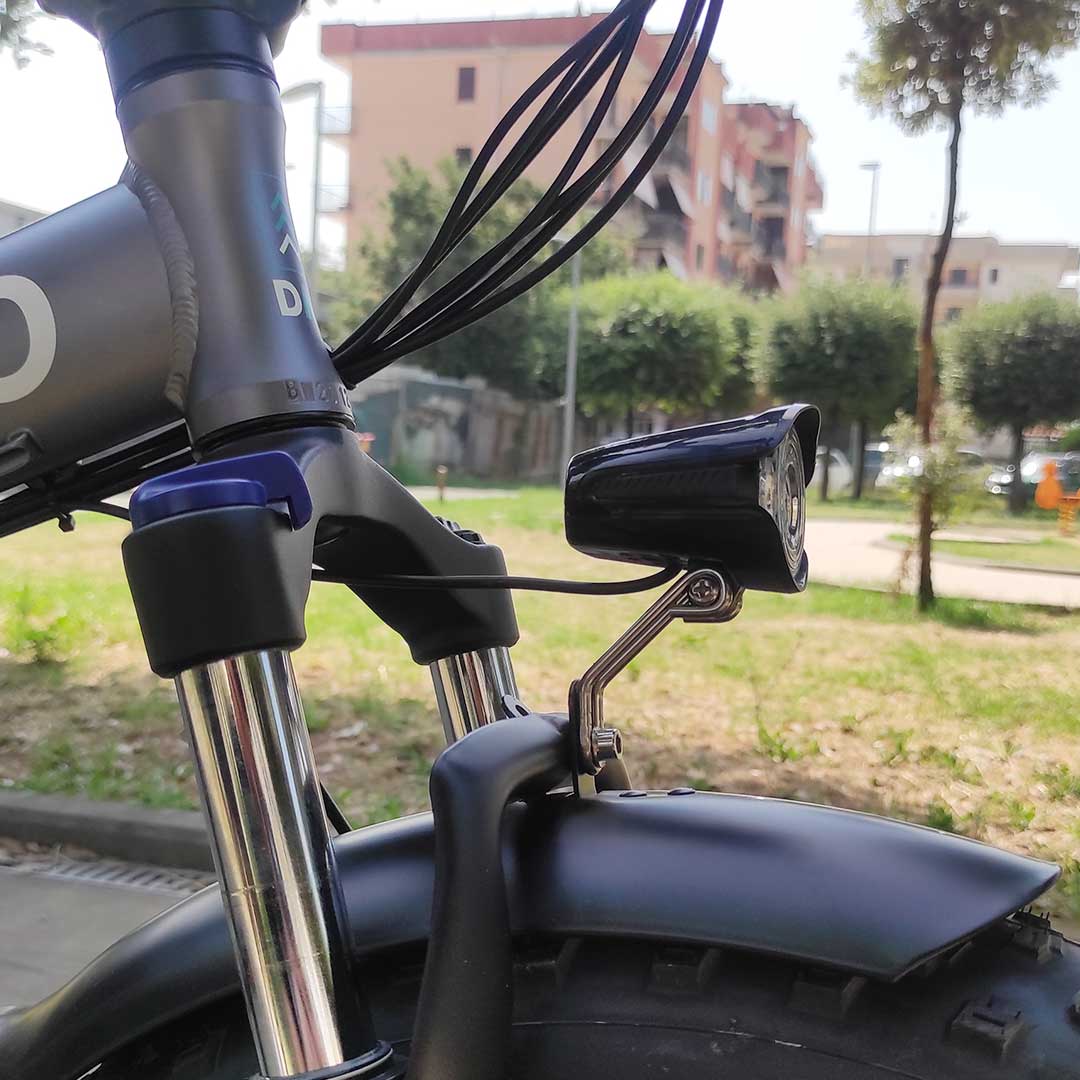

• Lights: LED front and rear lights

Design & Comfort

• Adjustable handlebar and seat – fits all body types
• Wide ergonomic saddle with Memory Foam
• Anti-slip rubber grips
• Foldable ABS pedals with aluminum body

Technical Specifications

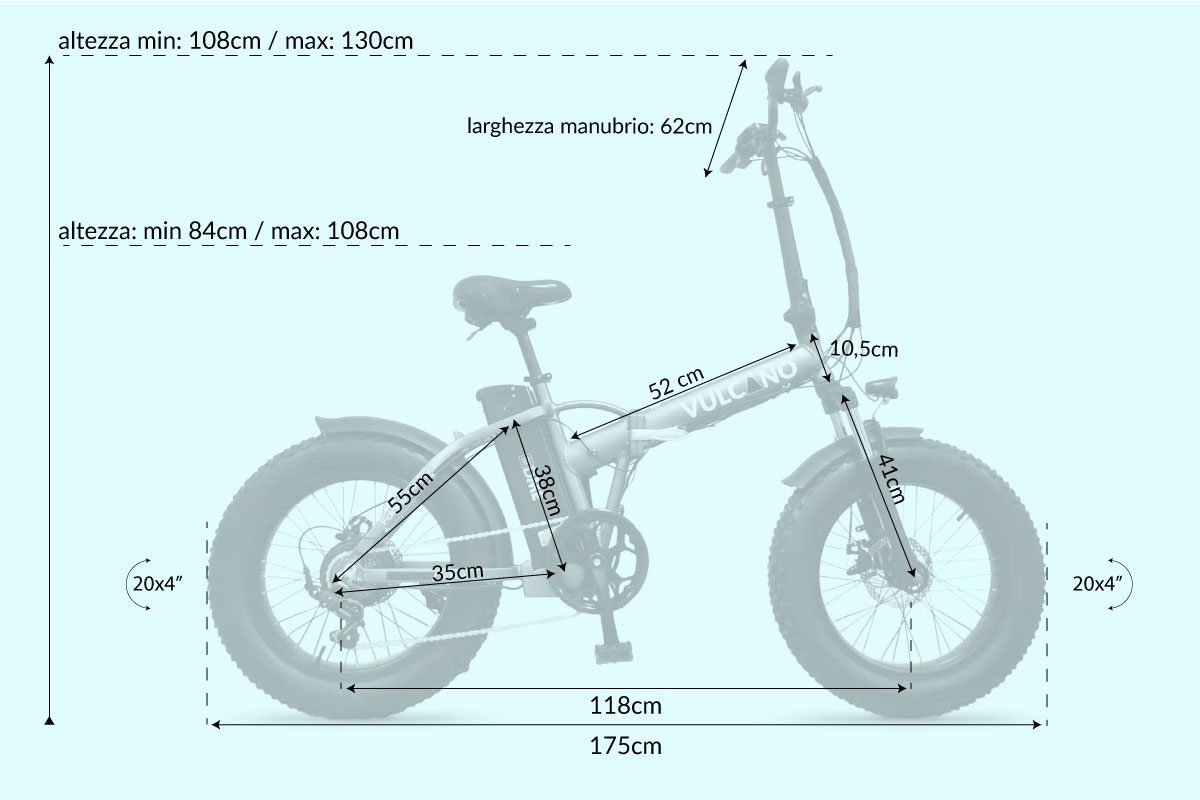

Frame & Wheels

• Frame: 6061 aluminum alloy, foldable
• Weight: approx. 23 kg (including battery)

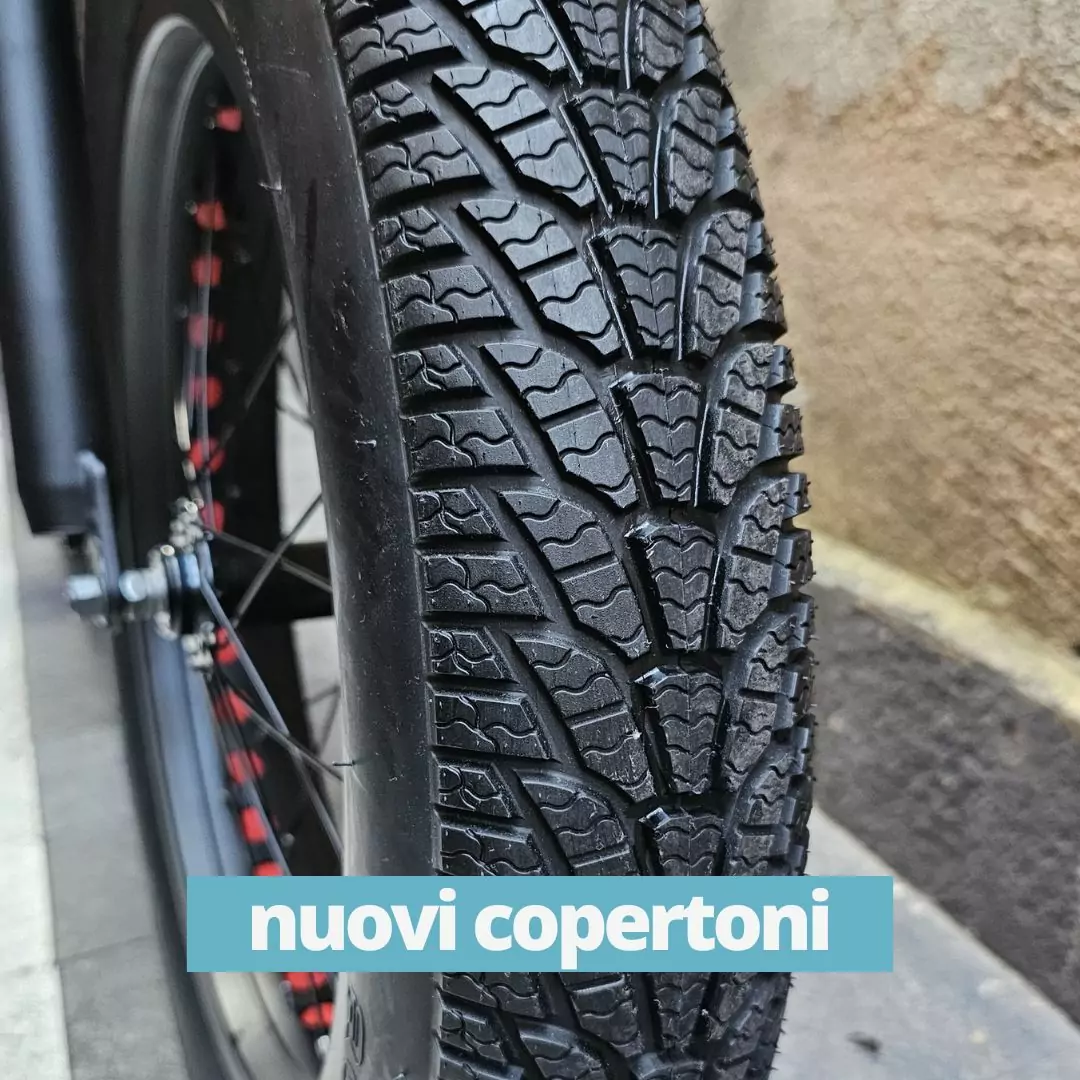

• Tires: 20"x4.0" CHAOYANG FAT tires
• Color: Black
• Max load: 100 kg

Motor & Battery

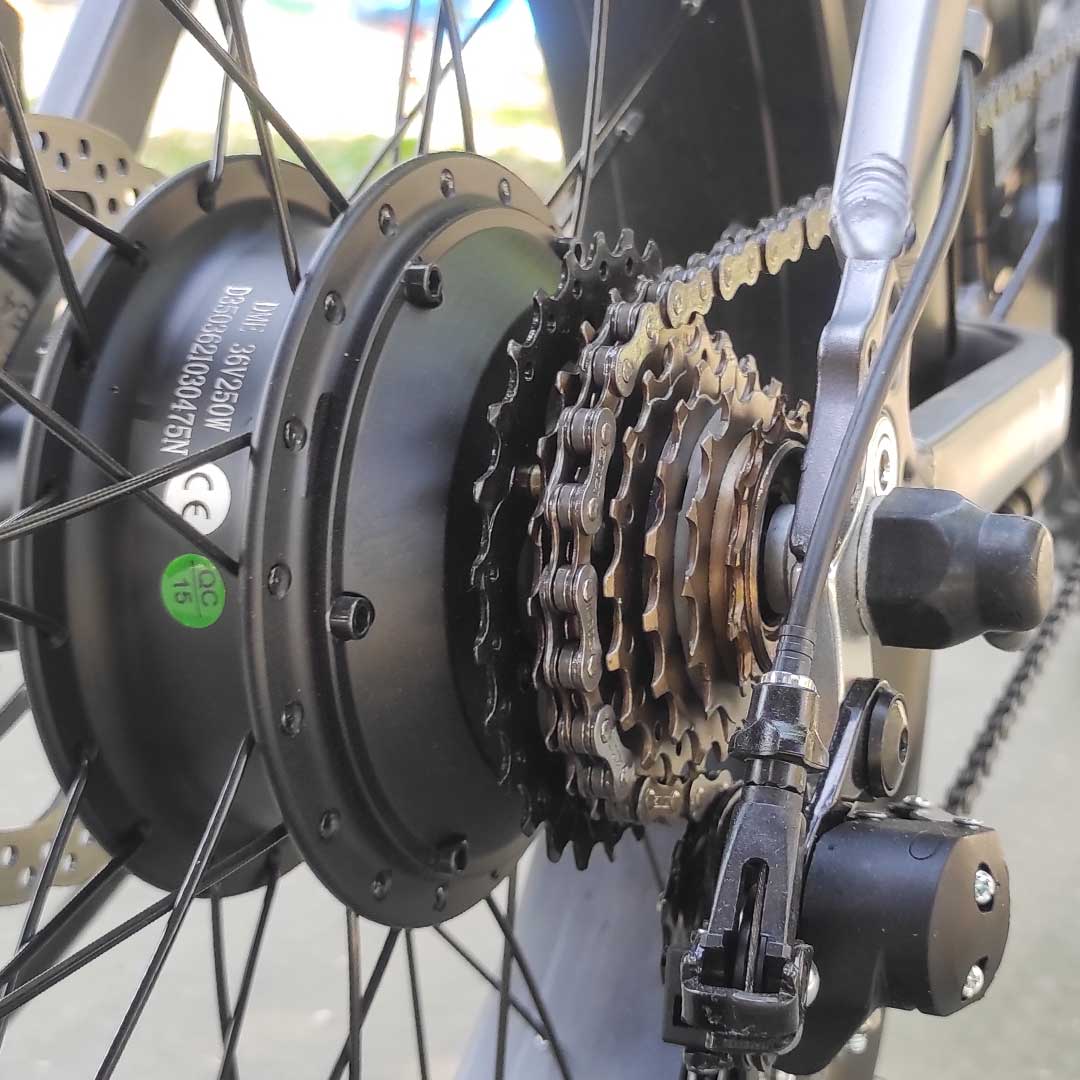

• Motor: JIABO 250W brushless, 36V (rear wheel)
• Controller: 18A
• Battery: 36V 10.4Ah Li-Ion with TCRFD-LH cells
• Range: 19–37 km depending on assistance level
• Charging time: 6–8 hours
• USB port: Yes
• Battery is lockable and easy to remove

Gears & Transmission

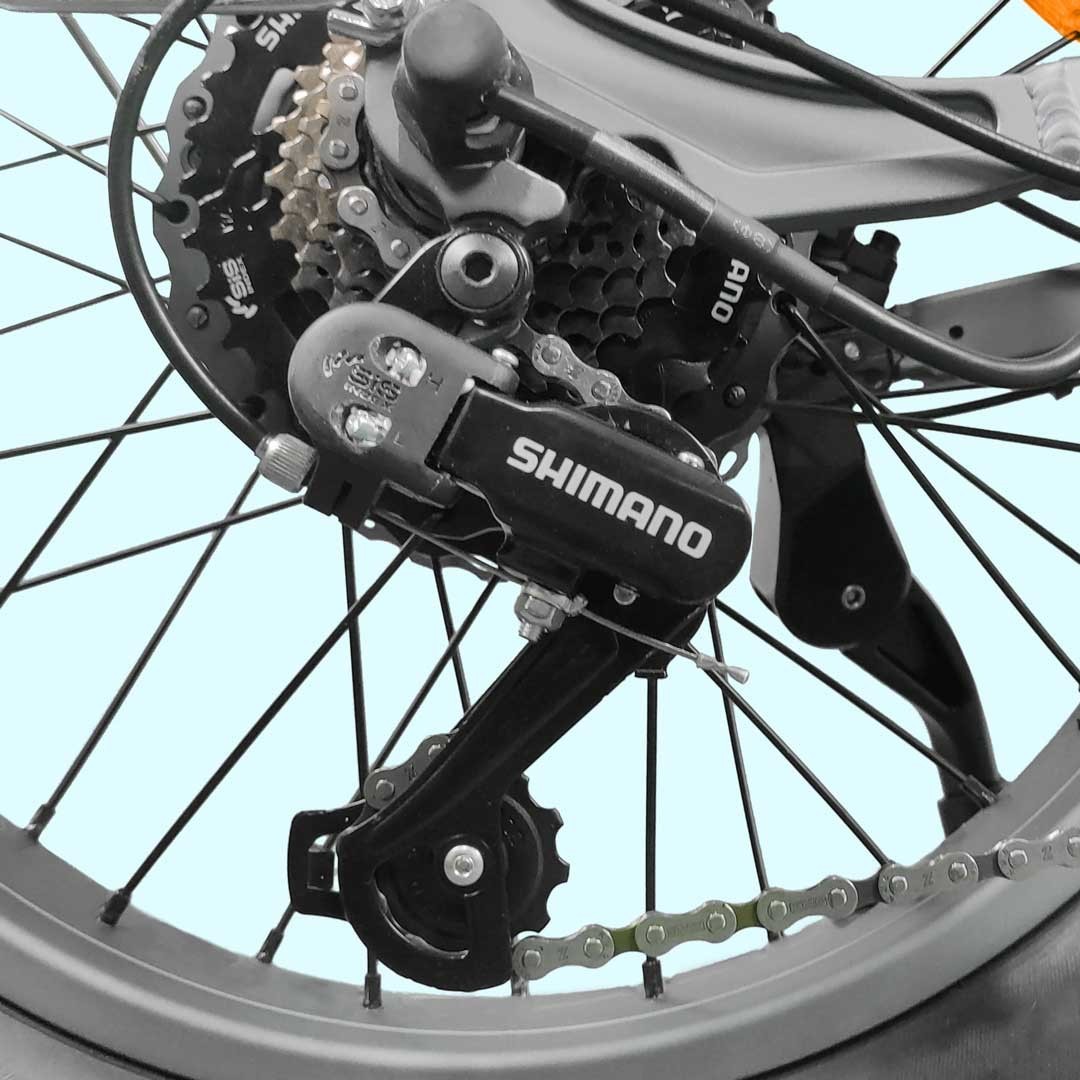

• 7-speed Shimano gears (Tourney RD-TY300D)
• Shifter: REVOSHIFT RS35
• Chainring: 48T single chainring

Display & Electronics

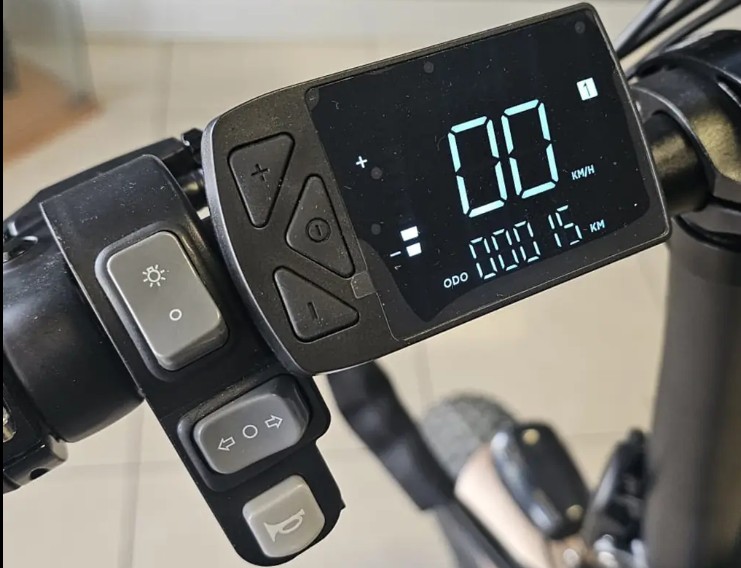

• Display: KEYDYSP KD58C-KDS LCD
• Assistance levels: 5
• Soft start mode: Yes, 6 km/h
• Functions: Speed, battery level, trip distance, backlight
• Water- and dust-resistant

Brakes & Suspension

• Mechanical disc brakes (FILEL) front and rear
• Front fork: Aluminum with suspension

Certification & Warranty

• CE certified
• Complies with EU standard EN15194
• 1-year warranty on motor, battery, and charger
• 1-year warranty on electronic components

Ready for Any Adventure

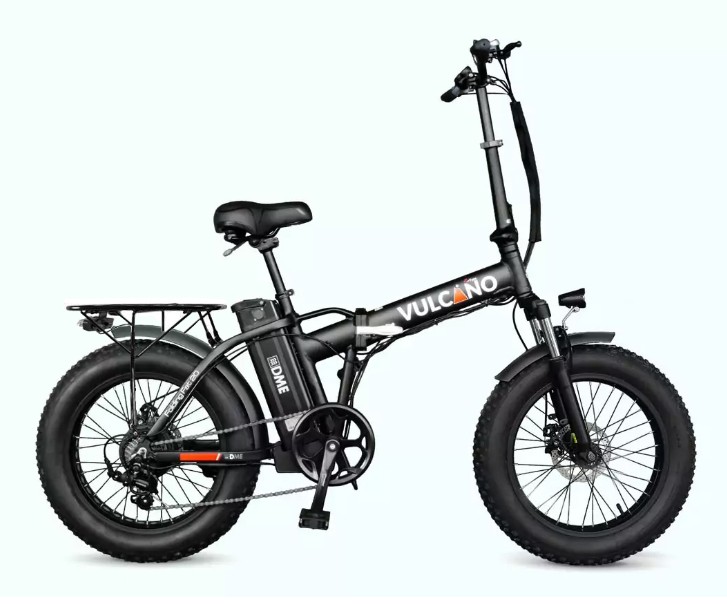

The BIGWAY 20" Fatbike E-Bike is more than just transportation – it's freedom on two wheels. Easy to carry, fun to ride, and built to last. Order today and experience a new way to move!
