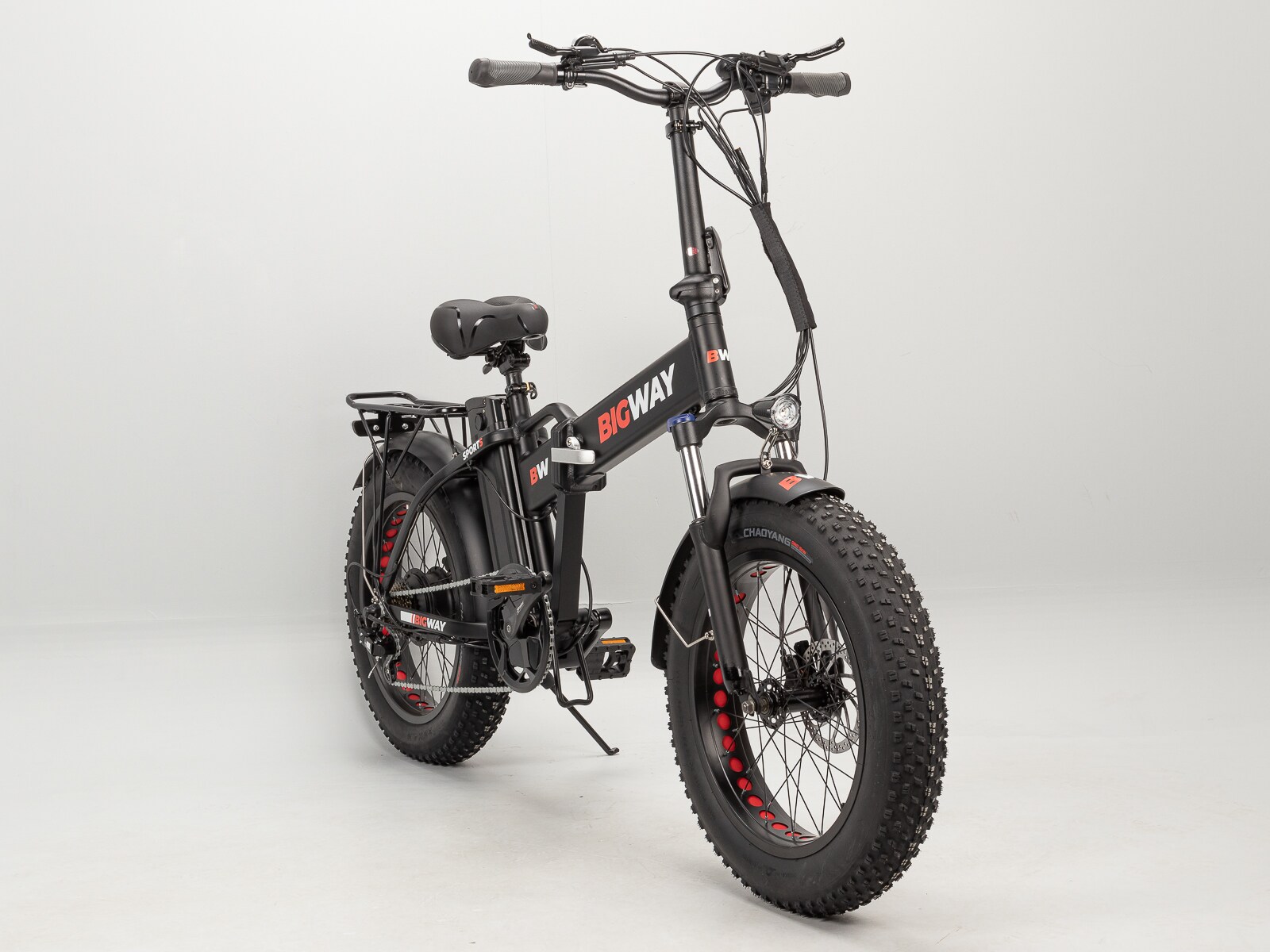

BIGWAY 20" FAT BIKE 250W 36V ELECTRIC BIKE

This comfortable, reliable and alluring electric fatbike from BIGWAY, which is fully assembled in Sweden, wants to inspire you to get out there. To see and experience life from a new point of view. And to breath fresh air while on the move.

✅ Built and tested in Gothenburg Sweden
✅ Hydraulic disc brakes front and rear
✅ 36V 15Ah Battery (40-60km)
✅ Foldable
✅ Motor 36V 250W
✅ Front and rear lights + indicators
✅ Shimano 7 gears
✅ 2 year warranty

High-end components – No compromises

The best eBike calls for the best components. BIGWAY stands out from the crowd when it comes to comparing design, functionality, quality, durability and price.

TECHNICAL SPECIFICATIONS:

• 6061 aluminum alloy, foldable
• Total weight less than 30kg (including battery)

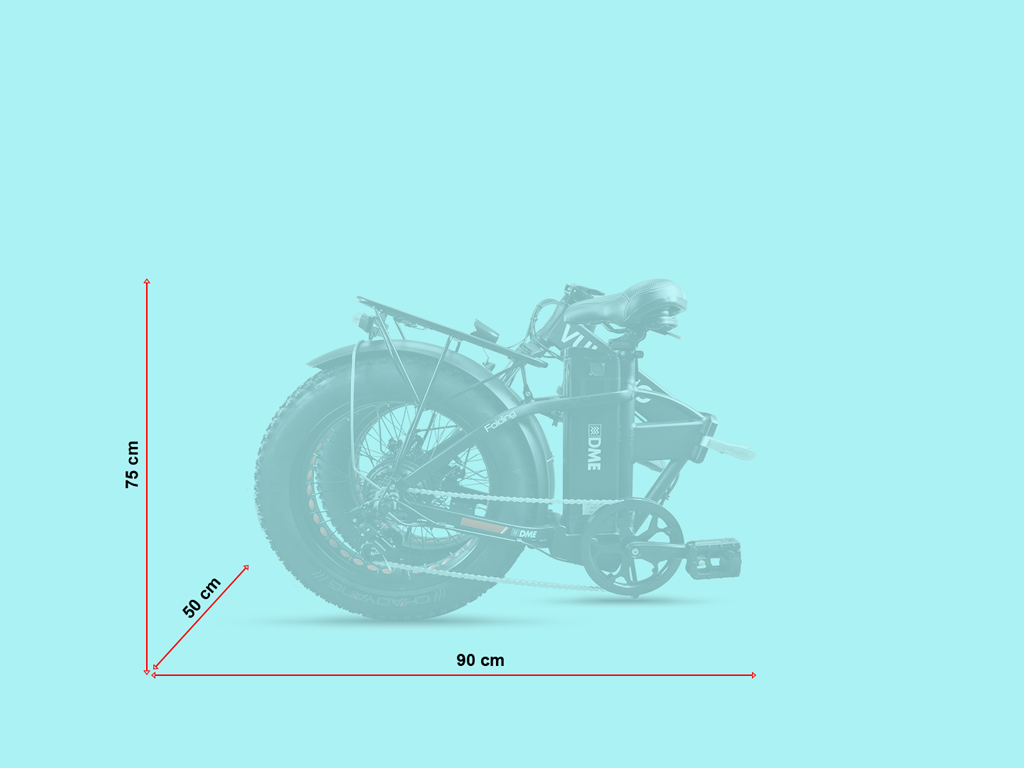

• Can be folded in seconds
• Easy handling for transport
• Support to keep the bike folded in an upright position
• Adjustable seat and handlebars to suit everyone
• Rubber handle with secure grip
• Comfortable wide saddle
• High quality TCRFD-LXD lithium (Li-ion) battery 36V 15Ah, CE marked
• Charging time from 6 to 8 hours
• Battery charger: 220 VAC, 50Hz, portable, CE marked

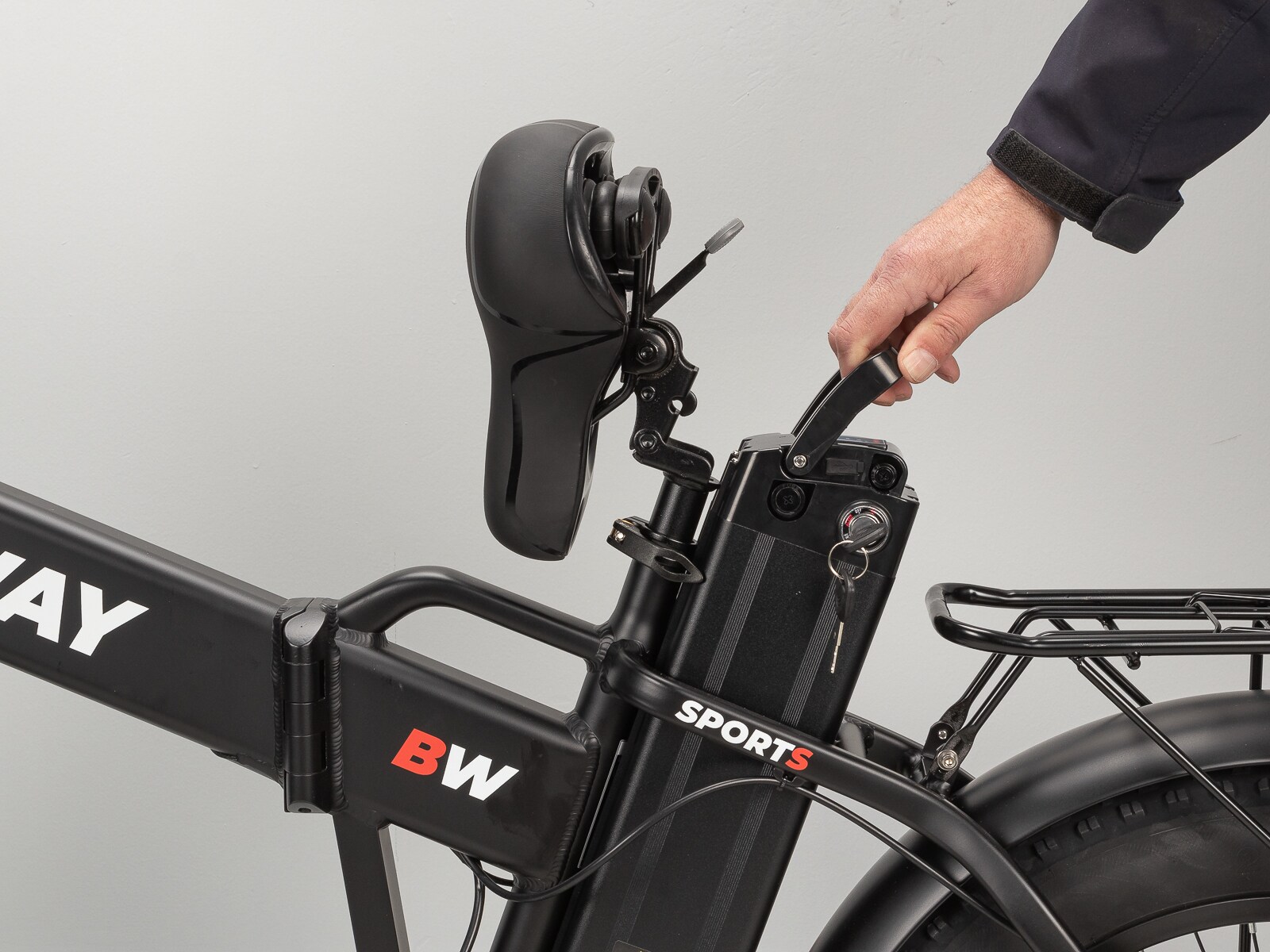

• Easily removable, chargeable from the e-bike
• Lock with key to fix the battery to the frame
• From 0 (no assistance) to 5 (full assistance)
• Configurable for personal settings

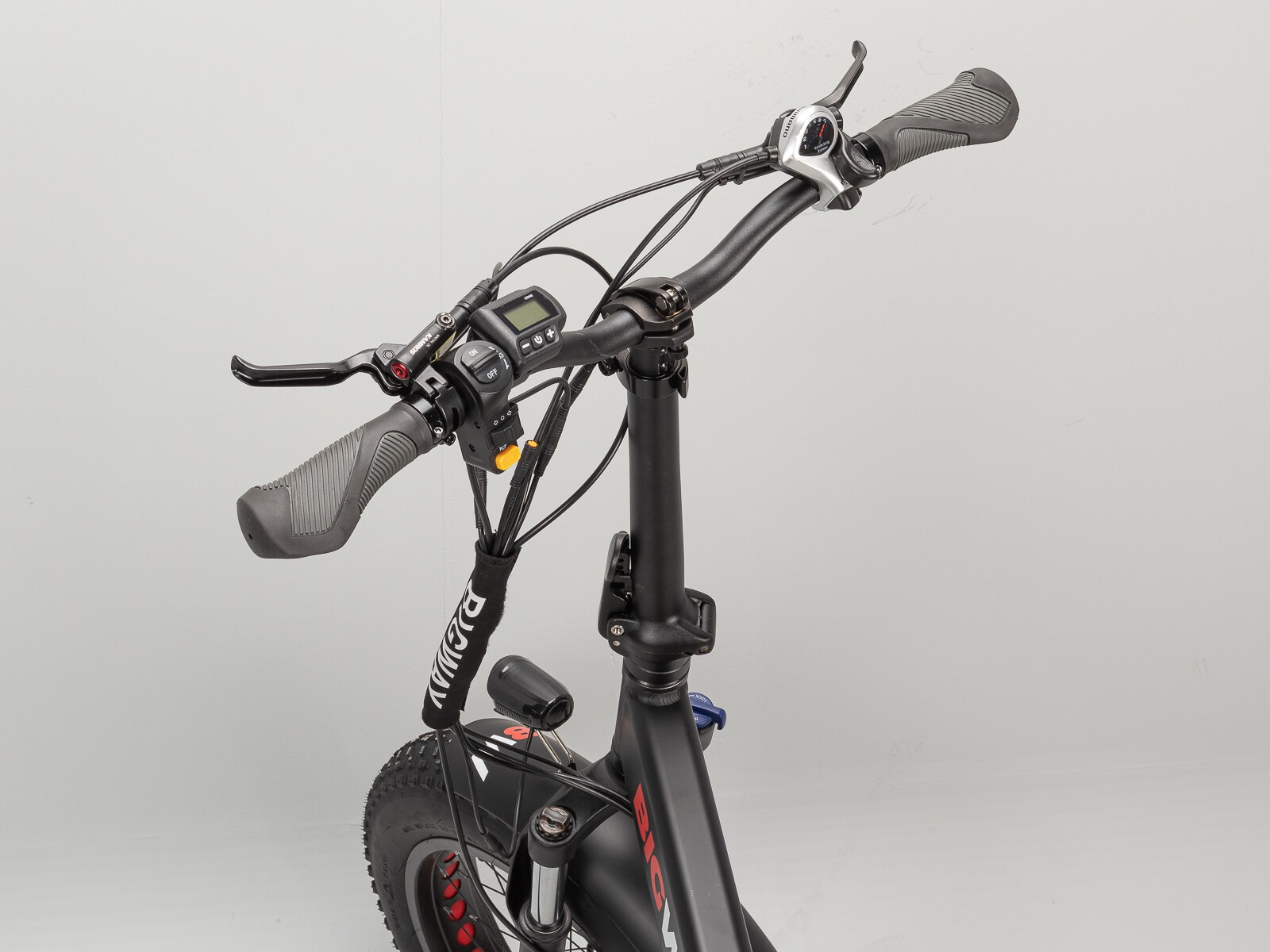

• Backlit LCD screen
• Shows time, speed and battery level
• Resistant to water and dust
• "Soft Start" mode at a fixed speed of 6Km/h (3.80 Mph), very helpful for climbing
• Shimano SHIMANO ALTUS 310 Thumb Shifter Plus 7 shifters
• SHIMANO Tourney / RD-TY300D
• Tire brand: CHAOYANG
• Tire size: 20"x 4.0
• Black color
• Max pressure to 20PSI 140kPa 1.4 Bar

• Motor:
  MODEL: JIABO Motor
  TYPE: Brushless direct current
  POWER 250 Watt
  VOLTAGE: 36 Volt
  PLACEMENT: Rear wheel


• Battery:
  CAPACITY: 36V 15AH
  TYPE OF CELLS: Lithium ion (Li-Ion) with TCRFD-LXD elements
  AUTONOMY (KM): 40 – 60 Km depends on the engine effort
  RECHARGING TIME :: 6 – 9 hours (approximately)
  CHARGING CYCLES: 1000 cycles (approximately)
  PLACEMENT: External, saddle pad, removable
  USB PORT: Yes


• Frame:
  MODEL: FAT-Bike, foldable
  MATERIAL: Aluminum, 6061
  SIZE: 20 ”
  TOTAL WEIGHT: 30Kg (approximately)
  AVAILABLE COLORS: Black


• Front Fork:
  TYPE OF FORK: Standard fork


• Steering:
  TYPE: In aluminum, with folding and adjustable handlebar
  HANDLEBAR: Riser bar


• Brake:
  BRAKE TYPE: Disc
  FRONT BRAKE CALIPER: Hydraulic, C-STAR
  REAR BRAKE CALIPER: Hydraulic, C-STAR
  BRAKE LEVELS: In aluminum


• Wheel:
  TIRE: CHAOYANG 20″ * 4 ”
  RIM: Aluminum, 34 holes with double reinforced chamber
  ANT HUB .: with brake disc
  REAR HUB: With engine and brake disc


• Gear Shift:
   TRANSMISSION REPORTS: 7 Speed
  FRONT DERAILLEUR: Not present
  REAR DERAILLEUR: SHIMANO Tourney / RD-TY300D
  CONTROLS: REVOSCHIFT RS35
  CROWN: Aluminum, single, 1 speed, 48 teeth


• Controller:
  MODEL: KEYDYSP KD-58C
  TYPE: Multifunction with LCD display
  PAS LEVELS: 5 levels (speed)
  CRUISE CONTROL: Yes, max 6Km / h
  FUNCTIONS: Battery status indicator, backlight, odometer, pas levels


• Other components:
  SADDLE: In “Gel”
  SEAT POST: Aluminum alloy with quick release (ZOOM)
  MUDGUARDS: Metal, steel (rust free)
  HEADLIGHT .: LED, can be activated from the display

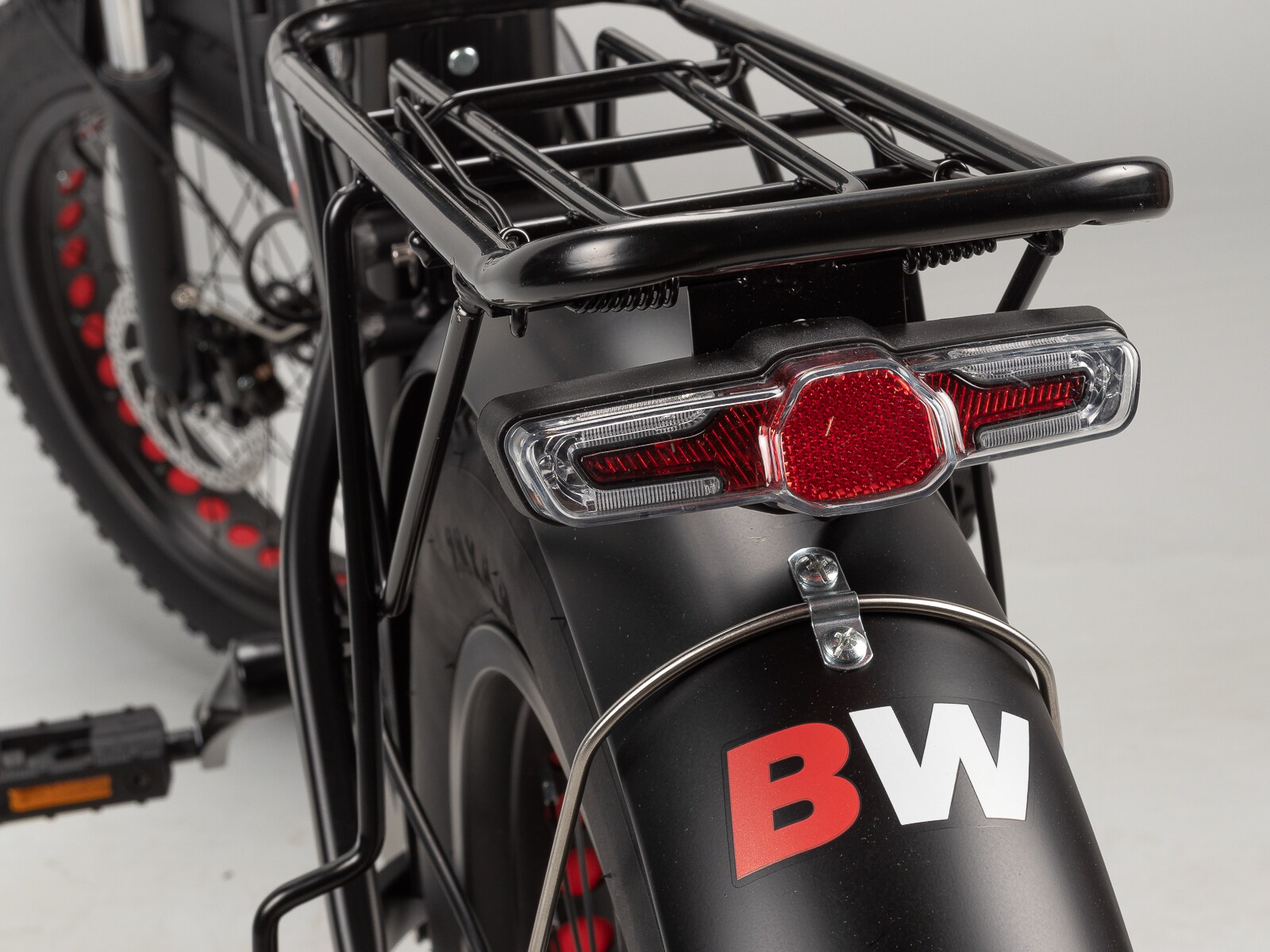

  REAR LIGHT: LED, can be activated from the display
  PEDALS: Folded, in ABS with aluminum body


• Accessories:
  COMPASS: Not present
  LUGGAGE RACK: Metal (Max 25Kg)
  PHONE HOLDER: Not present
  CLACKSON: Yes (bell)




Warranty:
24 month warranty on the electrical part.
5 month battery warranty.

- CERTIFICATE OF CONFORMITY
- EU STANDARD EN15194
